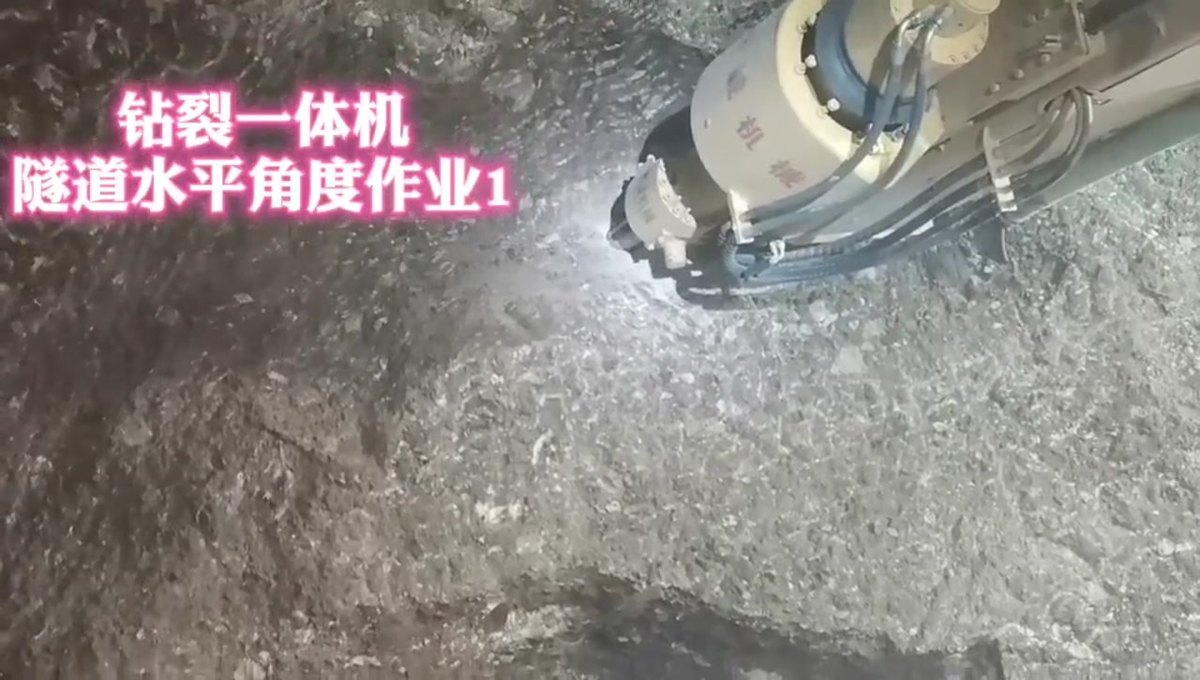

Tunnel Version - Excavator Drill & Split Machine for Horizontal Rock Breaking
Tunnel-specific version with a horizontal-angle head and a longer feed for face drilling in confined headings. Same non-explosive cycle - drill, split, repeat - giving a clean profile, low vibration and no blasting permit. Configured to your carrier and tunnel cross-section before production.
- MOQ
- 1
- Lead time
- 25–45 days
- Warranty
- 12 months
- Weight
- 1350 kg
Quality: Brand new
Video of this unit
Filmed in our yard before shipping - the actual part, not a stock clip. Hosted at 480p.
Tunnel Version - Horizontal Face Drilling
Tunnel Version - Horizontal Angle, Second Pass
Fits these machines
| Brand | Model | Note |
|---|---|---|
| Universal | Tunnel heading | Verify serial range |
| Universal | 20–40 t excavator | Verify serial range |
Specifications
| Application | Tunnel face, horizontal angle operation |
|---|---|
| Method | Drill + hydraulic split, no explosives |
| Feed | Longer feed for confined headings |
| Config | Built to your carrier and section |
| Weight | 1350 kg |
| Packing | 190 × 125 × 135 cm, wooden crate |
| Warranty | 12 months |
Shipping to your market
| Destination | Mode | Transit | Indicative |
|---|---|---|---|
| Tashkent, UZ / Ташкент | Rail + truck | 15–25 days | from $2.9/kg |
| Almaty, KZ / Алматы | Rail + truck | 12–22 days | from $2.6/kg |
| Lagos, NG / Лагос | Sea LCL | 32–45 days | from $95/CBM |
| Nairobi, KE / Найроби | Sea LCL | 28–38 days | from $110/CBM |
| Rotterdam, NL / Роттердам | Sea LCL | 30–40 days | from $85/CBM |
Freight is volatile — final cost confirmed at booking. We can ship consolidated with other parts to cut cost.
FAQ
How do I confirm this fits my machine?
Send the machine model, serial number and a photo of the identification plate. We check the OEM cross-reference and confirm before you pay.
What is included in the warranty?
12 months against manufacturing defects. Consumables, damage from contaminated oil and labour are excluded. We ship replacement parts, not cash refunds.
How do I pay?
30–50% deposit by T/T, balance before dispatch. For first orders we accept 100% advance or a documentary collection through your bank.
How is it shipped?
LCL or full container from Guangzhou. Rail/truck to Central Asia in 15–25 days, sea to Africa in 28–45 days. We quote FOB, CIF or DDP.
Get a price for this part
Send the machine model and quantity. You get a quote with shipping cost to your city within 24 hours.
